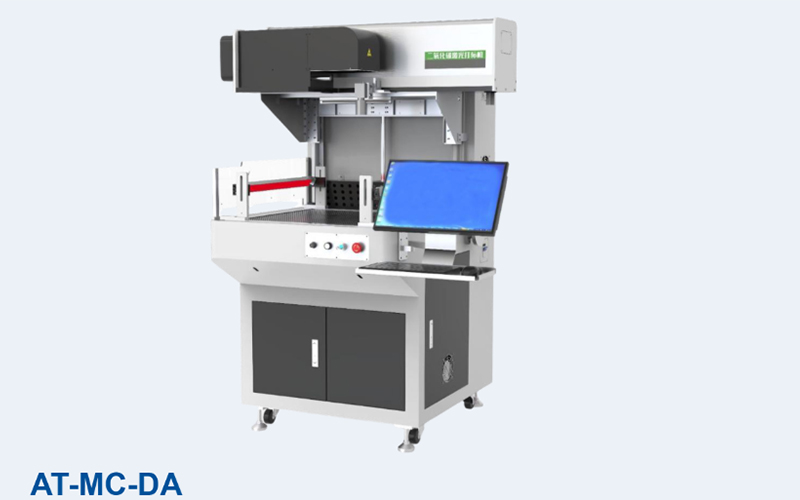

The AT-MC-DA Ultra Laser Marking System is a high-performance laser marking machine designed for precision marking, engraving, and processing applications across various industrial materials. Equipped with a high-power laser source and advanced three-axis motion system, it delivers excellent stability, high-speed operation, and accurate marking performance for professional manufacturing environments.
The system adopts an imported original Rofin laser with powerful output capability, combined with a three-axis motion structure to ensure smooth operation and reliable processing accuracy. Its high-speed marking capability and precise positioning performance make it suitable for applications requiring fine details, complex graphics, and consistent marking quality.
Featuring an all-aluminum frame design, the AT-MC-DA offers a compact structure, lightweight construction, and reduced installation space requirements. The upper exhaust dust removal system with an acrylic protective cover provides a cleaner and safer working environment, while the optional smoke purifier helps achieve near zero-emission production conditions.
With a manually adjustable optical bench, the machine supports flexible processing formats from 300×300mm to 800×800mm, allowing manufacturers to handle different product sizes and marking requirements efficiently.
Product Features
- High-Power Laser System: Equipped with an imported original Rofin laser source to provide stable and efficient laser marking performance.
- Three-Axis Motion System: Ensures precise movement control, excellent stability, and accurate processing results.
- High-Speed Marking Capability: Supports marking speeds up to 7000mm/s for improved production efficiency.
- Compact Aluminum Frame Design: Lightweight and space-saving structure simplifies installation and operation.
- Advanced Dust Removal System: Upper exhaust system and protective cover help maintain a cleaner working environment.
- Optional Smoke Purification: Supports near zero-emission requirements for environmentally friendly production.
- Flexible Processing Area: Adjustable optical bench supports working areas from 300×300mm to 800×800mm.
- Multiple Graphic Format Support: Compatible with BMP, PLT, AI, and DXF files for flexible design input.
Specifications of AT-MC-DA Ultra Laser Marking System
- Voltage: AC 220V, 50/60Hz
- Laser Power: 200W
- Equipment Power: 6kW
- Working Area: 300mm × 300mm to 800mm × 800mm
- Transmission System: Screw lifting
- Feeding Method: Manual loading
- Marking Speed: 7000mm/s
- Repeatability: 0.01mm
- Minimum Line Width: 0.35mm
- Supported Graphic Formats: BMP, PLT, AI, DXF
- Machine Weight: 700kg
- Machine Size: 1520 × 1300 × 1800mm
These specifications provide high-speed marking, excellent repeatability, flexible processing range, and stable laser performance, making the AT-MC-DA suitable for precision industrial marking applications.
Application Scenarios
- Industrial Product Marking: Suitable for permanent marking and engraving on various industrial components and materials.
- Textile and Garment Processing: Supports precision marking applications requiring detailed patterns and accurate positioning.
- Leather and Synthetic Material Processing: Ideal for engraving logos, patterns, and customized designs.
- Customized Product Manufacturing: Suitable for manufacturers requiring flexible graphic marking solutions.
- Precision Manufacturing: Provides reliable laser processing for products requiring fine lines and high repeatability.
Key Advantages
- High Precision Marking: 0.01mm repeatability ensures consistent and accurate processing results.
- Fast Production Performance: High marking speed improves manufacturing efficiency and reduces processing time.
- Stable Laser Operation: Advanced laser source and motion system provide reliable long-term performance.
- Flexible Processing Capability: Adjustable working area supports different product sizes and applications.
- Cleaner Working Environment: Integrated exhaust system and optional purifier improve workplace conditions.
About the Manufacturer
The AT-MC-DA Ultra Laser Marking System from Alster is developed for manufacturers seeking a precise, efficient, and reliable laser marking solution. Combining high-power laser technology, advanced motion control, and flexible processing capability, the machine delivers excellent marking quality for modern industrial applications.
With high-speed operation, accurate positioning, and environmentally friendly dust removal options, the AT-MC-DA from Alster helps manufacturers improve production efficiency, enhance product identification quality, and achieve professional laser processing results.
