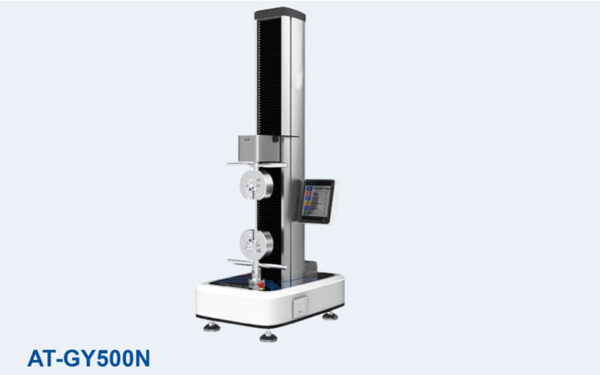

The AT-GY500N Electronic Universal Testing Machine is a high-precision testing device designed for material performance evaluation and quality inspection applications. It is widely used for tensile testing, compression testing, bending testing, peeling testing, and force holding tests across various materials and products.
Equipped with a high-precision backlash-free transmission system, the AT-GY500N adopts a precision ball screw and arc-tooth synchronous belt drive structure to ensure smooth, efficient, and stable movement. The bidirectional no-backlash design improves testing accuracy and repeatability, making it suitable for demanding laboratory and industrial testing environments.
The machine features specially designed anti-slip grips that provide secure clamping performance while allowing easy operation. The excellent coaxiality design helps protect the load cell from damage caused by irregular specimens and ensures reliable test results.
With multiple testing modes and precise measurement control, the AT-GY500N provides flexible testing solutions for different material evaluation requirements. Its accurate force measurement, deformation control, and adjustable testing speed make it an ideal choice for manufacturers requiring reliable quality control equipment.
Product Features
- High-Precision Transmission System: Uses a precision ball screw and arc-tooth synchronous belt drive to achieve smooth and efficient movement with no backlash.
- Excellent Testing Accuracy: Provides accurate force measurement and stable testing performance for reliable inspection results.
- Anti-Slip Grip Design: Specially designed fixtures ensure firm specimen clamping and prevent jaw slipping during testing.
- Load Cell Protection Design: Excellent coaxiality reduces uneven force impact and protects the load cell from irregular samples.
- Multiple Test Modes: Supports tensile, tension-compression, bending, peel, and force holding tests.
- Stepless Speed Adjustment: Provides flexible test speed control from 0.1–500mm/min to meet different testing requirements.
- Stable Industrial Structure: Designed for continuous testing applications with reliable mechanical performance.
Specifications of AT-GY500N Electronic Universal Testing Machine
- Power Supply: Single Phase, 220V, 50Hz, 400W
- Maximum Testing Force: 5000N
- Accuracy Grade: Class 1
- Testing Force Measuring Range: 2%–100% FS
- Relative Error of Indicated Testing Force: Better than ±1% of indicated value
- Force Resolution: 1/250000
- Speed Control Accuracy: Better than ±0.5%
- Deformation Accuracy: Better than ±0.1%
- Test Speed Range: 0.1–500mm/min, stepless speed regulation
- Machine Weight: 55kg
These specifications provide high testing precision, stable operation, and flexible measurement capability, making the AT-GY500N suitable for professional material testing and quality inspection applications.
Application Scenarios
- Material Tensile Testing: Used for evaluating tensile strength, elongation, and mechanical properties of different materials.
- Textile and Garment Testing: Suitable for testing fabrics, seams, elastic materials, and textile components.
- Adhesive and Bonding Testing: Supports peel tests and bonding strength evaluation for adhesive products.
- Compression and Bending Testing: Suitable for evaluating compression resistance and flexural performance.
- Industrial Quality Control: Helps manufacturers perform accurate product inspection and material verification.
Key Advantages
- High Testing Accuracy: Class 1 accuracy and precise force measurement ensure reliable testing data.
- Wide Testing Capability: Multiple test modes provide flexible solutions for different material evaluations.
- Stable Transmission Performance: Backlash-free drive system improves testing consistency and repeatability.
- Easy Sample Operation: Anti-slip grips simplify specimen installation while improving testing safety.
- Professional Quality Inspection Solution: Suitable for manufacturers requiring accurate and efficient testing equipment.
About the Manufacturer
The AT-GY500N Electronic Universal Testing Machine from Alster is developed for manufacturers and laboratories requiring precise, reliable, and versatile material testing solutions. Combining high-precision transmission technology, accurate measurement systems, and multiple testing functions, the machine delivers dependable performance for quality inspection and research applications.
With excellent testing accuracy, flexible operation, and stable mechanical performance, the AT-GY500N from Alster helps customers improve quality control processes, evaluate material performance, and achieve reliable testing results across different industries.
