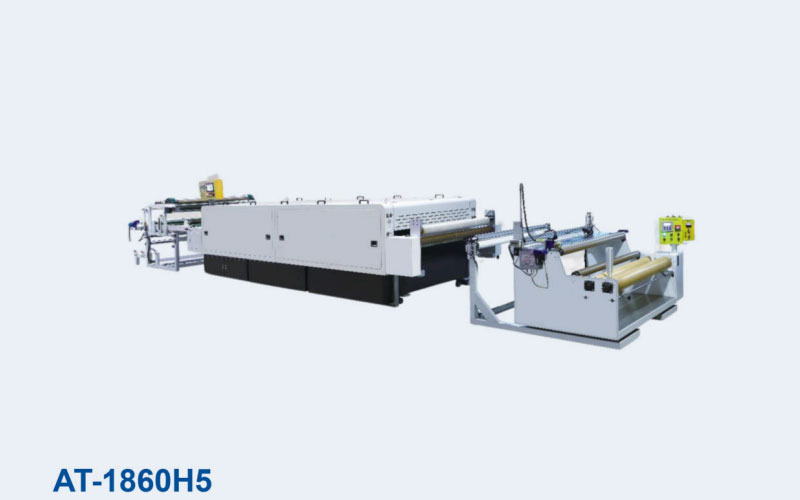

The AT-1860H5 Fabrics and Adhesive Films Laminating Machine is a high-performance industrial laminating system designed for fabric and adhesive film composite processing. It is widely used in garment manufacturing, textile lamination, functional fabric production, and other applications requiring strong bonding performance and uniform heat distribution.
Featuring an ultra-long compound strip heating zone, the AT-1860H5 provides a heating area six times longer than traditional laminating machines. This advanced design allows both sides of the adhesive film to receive balanced heat transfer, ensuring uniform melting, stable bonding, and improved lamination quality.
Equipped with four digital temperature control zones and twelve independent heating systems, the machine maintains precise and consistent temperature conditions during operation. The German imported seamless Teflon conveyor belt ensures smooth heat transmission, excellent durability, and a service life up to nine times longer than ordinary conveyor belts.
The AT-1860H5 also integrates strong circulating water cooling and silent air cooling systems. These cooling technologies enable instant product shaping after lamination, enhance adhesive strength, and improve overall production efficiency.
Product Features
- Ultra-Long Heating Zone Design: The extended composite heating area is six times longer than traditional systems, ensuring uniform heating on both sides of adhesive films.
- Multi-Zone Digital Temperature Control: Four independent temperature control zones provide accurate thermal management for stable lamination quality.
- 12-Group Heating System: Advanced heating configuration maintains consistent temperature distribution throughout the laminating process.
- German Imported Teflon Conveyor Belt: Provides excellent heat transfer performance, smooth operation, and extended service life.
- Strong Cooling System: Equipped with circulating cold water cooling and silent air cooling systems for rapid product shaping.
- High Pressure Lamination: Supports maximum pressure up to 8kg/cm², ensuring strong adhesion between fabrics and adhesive films.
- Wide Working Width: 1650mm laminating width meets the requirements of large-area textile composite processing.
Specifications of AT-1860H5 Fabrics and Adhesive Films Laminating Machine
- Voltage: Three-phase, 380V
- Heating Power: 48KW
- Motor Power: 22KW
- Maximum Pressure: 8kg/cm²
- Bonding Temperature: 0–220°C
- Maximum Bond Width: 1650mm
- Compounding Speed: 6m/min–16m/min
- Machine Size: 10300 × 2300 × 1820mm
- Gross Weight: 4290kg
These specifications ensure precise temperature control, strong bonding pressure, and high-speed continuous operation for large-scale fabric and adhesive film lamination applications.
Application Scenarios
- Garment Fabric Lamination: Suitable for bonding fabrics with adhesive films in jackets, outdoor clothing, sportswear, and functional apparel.
- Textile Composite Processing: Used for producing laminated fabrics with enhanced performance and durability.
- Functional Fabric Manufacturing: Ideal for waterproof, breathable, and protective textile material production.
- Adhesive Film Bonding: Provides stable heat and pressure control for various hot melt adhesive film applications.
- Industrial Textile Production: Designed for continuous high-volume laminating operations in professional factories.
Key Advantages
- Superior Lamination Quality: Long heating zone and precise temperature control ensure uniform bonding results.
- High Production Efficiency: Continuous operation with adjustable laminating speed improves manufacturing productivity.
- Stable Temperature Performance: Multiple heating zones maintain accurate and consistent thermal conditions.
- Strong Adhesion Capability: High-pressure system and rapid cooling improve bonding strength and product stability.
- Long Service Life: Imported Teflon conveyor belt and reliable industrial structure reduce maintenance requirements.
About the Manufacturer
The AT-1860H5 Fabrics and Adhesive Films Laminating Machine from Alster is designed for modern textile manufacturers seeking efficient, precise, and durable lamination solutions. Combining advanced heating technology, intelligent temperature control, and powerful cooling systems, the machine delivers consistent bonding performance for a wide range of fabric composite applications.
With excellent production stability, high working efficiency, and reliable industrial design, the AT-1860H5 helps manufacturers improve product quality, increase production capacity, and achieve superior results in fabric and adhesive film lamination processes. Want to get more about this machine? Welcome to contact Alster!
