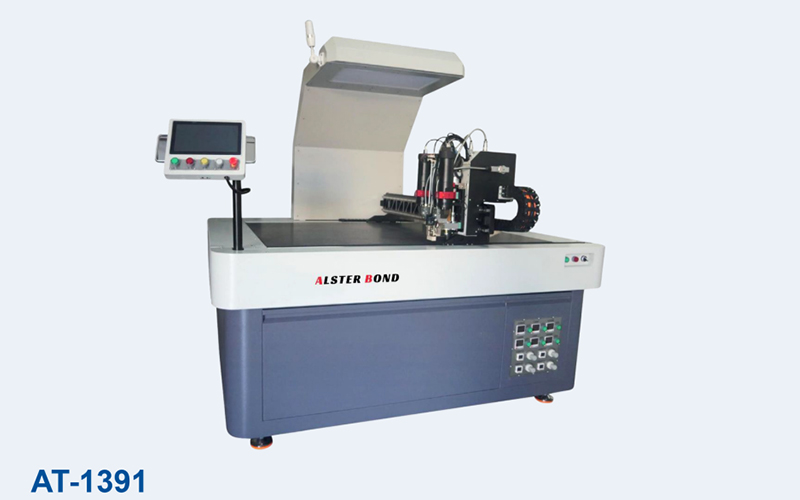

The AT-1391 High Precision Scraper Line Gluing 3-in-1 Machine is a professional automatic gluing system designed to combine dispensing, scraping, and drawing functions in one integrated machine. By bringing three processing functions together, it reduces equipment changeover time, simplifies production workflows, and provides a cost-effective solution for manufacturers requiring flexible adhesive application.
The machine delivers precise and consistent glue application, producing uniform and smooth glue paths without wire drawing, glue accumulation, or leakage. Its high-precision dispensing capability is suitable for fine lines, dots, curves, and intricate adhesive patterns, making it ideal for applications where accurate glue placement and consistent finishing quality are essential.
Designed for easy operation, the AT-1391 does not require complicated programming. Operators can directly use guide maps for production, making the machine quick to learn and allowing rapid product style changes. This helps reduce labor requirements and training costs while improving manufacturing flexibility.
The AT-1391 features a robust frame and servo-driven motion system for stable, deviation-free long-term operation. Adjustable glue volume, processing speed, and glue paths allow manufacturers to adapt the machine to different materials, patterns, and production processes.
Product Features
- 3-in-1 Processing Design: Combines dispensing, scraping, and drawing functions in one machine, reducing changeover time and improving equipment utilization.
- High-Precision Gluing: Produces uniform and smooth glue paths with accurate adhesive placement for demanding production applications.
- Excellent Glue Application Quality: Helps prevent wire drawing, glue accumulation, and leakage for cleaner and more consistent results.
- Complex Pattern Capability: Supports fine lines, dots, curves, and intricate adhesive patterns for diverse production requirements.
- No Programming Required: Operators can use guide maps directly, simplifying machine operation and reducing training requirements.
- Fast Product Changeover: Easy operation and quick style adjustment help manufacturers improve production flexibility.
- Servo Drive System: High-precision servo motors and drives provide stable movement and accurate positioning during continuous operation.
- Adjustable Processing Parameters: Glue volume, working speed, and glue path can be adjusted according to different applications.
- Stable Long-Term Performance: A robust machine structure supports reliable operation and minimizes positioning deviation during extended production.
Specifications of AT-1391 High Precision Scraper Line Gluing 3-in-1 Machine
- Voltage: AC 220V, 50/60Hz
- Power: 2200W
- Servo Motor: 400W × 3, 100W × 2
- Servo Drive: 400W × 3, 100W × 2
- Working Area: 1380 × 1200mm
- Applicable Glue Capacity: 300cc + 5 gallons
- Working Air Pressure: 0.6–0.8MPa
- Repeat Accuracy: ±0.015mm
- Motion Guide: Rack
- Maximum Travel Speed: 1000mm/s
- Machine Weight: 1000kg
- Machine Dimensions: 1800 × 1300 × 1650mm
These specifications provide high positioning accuracy, fast motion performance, stable servo control, and flexible adhesive application capability, making the AT-1391 suitable for precision gluing processes in professional manufacturing environments.
Application Scenarios
- Precision Adhesive Application: Suitable for products requiring accurate glue dispensing along fine lines, dots, curves, and complex patterns.
- Industrial Gluing Processes: Supports production applications where consistent adhesive distribution and stable processing quality are required.
- Patterned Glue Application: Ideal for manufacturing products that require customized adhesive paths and intricate glue designs.
- Large-Format Workpieces: The 1380 × 1200mm working area provides sufficient space for processing larger workpieces.
- Flexible Production: Quick style changes and adjustable processing parameters make the machine suitable for manufacturers producing multiple product designs.
Key Advantages
- Three Functions in One Machine: Dispensing, scraping, and drawing capabilities reduce equipment requirements and production changeover time.
- Exceptional Gluing Precision: Repeat accuracy of ±0.015mm supports consistent adhesive placement for precision manufacturing.
- Clean and Uniform Glue Paths: Controlled adhesive application helps minimize glue accumulation, leakage, and unwanted wire drawing.
- Easy Operation: Guide-map operation eliminates complicated programming and helps reduce operator training costs.
- High-Speed Servo Movement: Maximum travel speed of 1000mm/s improves production efficiency while maintaining accurate positioning.
- Flexible Process Control: Adjustable glue volume, speed, and path settings allow the machine to adapt to different production requirements.
About the Manufacturer
The AT-1391 High Precision Scraper Line Gluing 3-in-1 Machine from Alster is developed for manufacturers seeking a high-precision, flexible, and efficient adhesive application solution. By integrating dispensing, scraping, and drawing functions, the machine simplifies production processes while providing accurate and consistent glue application.
With a high-precision servo drive system, large working area, rapid travel speed, and easy guide-map operation, the AT-1391 helps manufacturers reduce changeover time, lower training costs, improve adhesive application quality, and achieve stable long-term production performance.
