Overlapping Sewing Machine for Sale
Alster®️ is a professional seamless overlapping sewing machine manufacturer who is involved in this industry for more than 10 years. We provide different types of seamless bonding machine for clothing industry. Contact us for suitable machine!
- A variety of bonding machines available.
- Can be customized according to your requirement.
- Used for different types of seamless garments.
Introduction of Overlapping Sewing Machine
The seamless overlapping sewing machine is a high-performance equipment designed for the seamless clothing manufacturing industry, especially for the seamless splicing application of hot melt adhesive film. It achieves seamless splicing between different fabrics through precise heating, pressure control and automated operation, ensuring that the product has superior strength, comfort and aesthetics. Seamless overlapping machines are widely used in seamless underwear, sportswear, casual wear and other fields, providing manufacturers with an efficient and reliable splicing solution.
Seamless Overlapping Machines In Stock
At present, the Alster factory mainly produces one type of seamless splicing machine, the AT-211 seamless overlapping machine, which is specially designed for the seamless underwear manufacturing field. It has complete functions and can effectively improve production efficiency!
Specification of AT-211
Film: Hot melt adhesive film
Feeding: Upper and lower fabric feeding belt
Speed:0-150mm/second
Presser foot: Air cylinder driven
Foot lift:10mm
Compressed air pressure: 0.5Mpa
Compressed air consumption:10-23L/min
Maximum Power: 3500W
Input power supply: Single phase 220V
Net weight: 120kg
Gross weight: 180kg
Packing size: 133*66*138cm
Features of Alster Seamless Overlapping Machine
Built-in fault detection system
AT-211 is equipped with an advanced fault detection system, which can monitor the equipment operation status in real time to ensure the normal operation of the equipment, and alarm in time when abnormalities occur to prevent production interruptions.
Temperature difference alarm function
The equipment has a temperature difference alarm function to remind users when the temperature is abnormal, avoid splicing quality problems caused by uneven temperature, and improve the production qualification rate.
High temperature protection system
The equipment is equipped with a high temperature protection system to effectively prevent the equipment from overheating, thereby extending the service life of the equipment and ensuring the safety of operators.
Independent adjustment function
The speed and temperature of the upper and lower feeding belts can be adjusted independently to meet the needs of different materials and processes. In addition, the temperature of the heating tank and the blowing system can also be controlled separately to ensure that the splicing area is in the best condition.
Product function introduction
- Hot melt adhesive film splicing: Through precise temperature and pressure control, AT-211 uses hot melt adhesive film to seamlessly splice fabrics, which is suitable for a variety of fabric types, especially in the production of seamless underwear.
- Cylinder-driven presser foot: The presser foot is driven by a cylinder to ensure stable pressure applied to the splicing, while providing 10mm presser foot lifting space to adapt to fabrics of different thicknesses.
- Trimming function: Equipped with a trimmer, it can effectively trim excess fabric at the splicing, ensure that the seams are flat and beautiful, and improve the quality of the final product.
Application field introduction

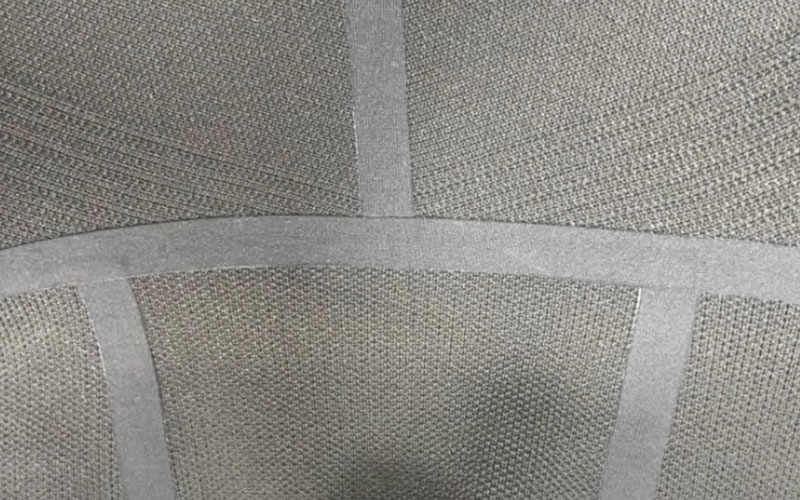

Seamless lap machines are widely used in the field of seamless underwear manufacturing, especially for the production of seamless bras, seamless underwear, seamless sportswear and other highly elastic and comfortable clothing. Through hot melt adhesive film technology, the seamless lapping machine ensures a traceless and non-indentation effect during the splicing process of these garments, improving the comfort and overall texture of wearing.
What is the price of seamless overlapping machine?
The price of the AT-211 seamless lapping machine varies according to the specific accessories and customization requirements. The price range of the basic model is about $20,000-50,000, and the specific price can be negotiated according to the customer’s needs and configuration. The price includes packaging, transportation costs and technical support services.
How to overlap the seams for seamless clothing?
The working principle of the seamless lapping machine is based on the heating and pressing of the hot melt adhesive film. The fabric is fed into the machine through the upper and lower fabric feeding belts. The adhesive film is evenly heated in the heating tank, and then the two pieces of fabric are firmly bonded together under the pressure of the presser foot. The whole process is automatically carried out through an intelligent control system, which is easy to operate and efficient.
For detailed workflow and operation demonstration, please watch the video link on the right to see how the seamless lapping machine efficiently completes the seamless splicing task.
